10.1 inch Wall Mounted Meeting Room Tablet PC
WA-1012T
1
Main IC : RK3288,Quad-core cortex A17, 1.8GHz
Display : 10.1 inch Resolution : 1280*800 IPS
RAM : DDR3 2G Flash : 16GB
OS : Google Android 5.1/6.0/8.1 WiFi: 802.11 b/g/n
Bluetooth : Yes HDMI : NO RJ45 with POE
Camera : Front: 2.0 MP
Micro USB OTG / USB for serial
Speaker: 2*1.5W Adaptor: 12V, 1.5A
VESA: 75x75mm
Color: Black/white
Note: Without battery, include Power Adapter
Display : 10.1 inch Resolution : 1280*800 IPS
RAM : DDR3 2G Flash : 16GB
OS : Google Android 5.1/6.0/8.1 WiFi: 802.11 b/g/n
Bluetooth : Yes HDMI : NO RJ45 with POE
Camera : Front: 2.0 MP
Micro USB OTG / USB for serial
Speaker: 2*1.5W Adaptor: 12V, 1.5A
VESA: 75x75mm
Color: Black/white
Note: Without battery, include Power Adapter
Quantity
10.1 inch Meeting Room Tablet PC With Android System Digital Signgae
Datail Specification
Appearance characteristics
1. Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.
2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1280x800 display resolution
3. Lightweight fuselage: Easy to install
4. Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.
Use Scenarios
1. Education: It can be used for online interaction between teachers and students
2. Entertainment: Smoothly run games and mainstream video formats.
3. Consumer ordering: Electronic menu display and order placement for restaurants

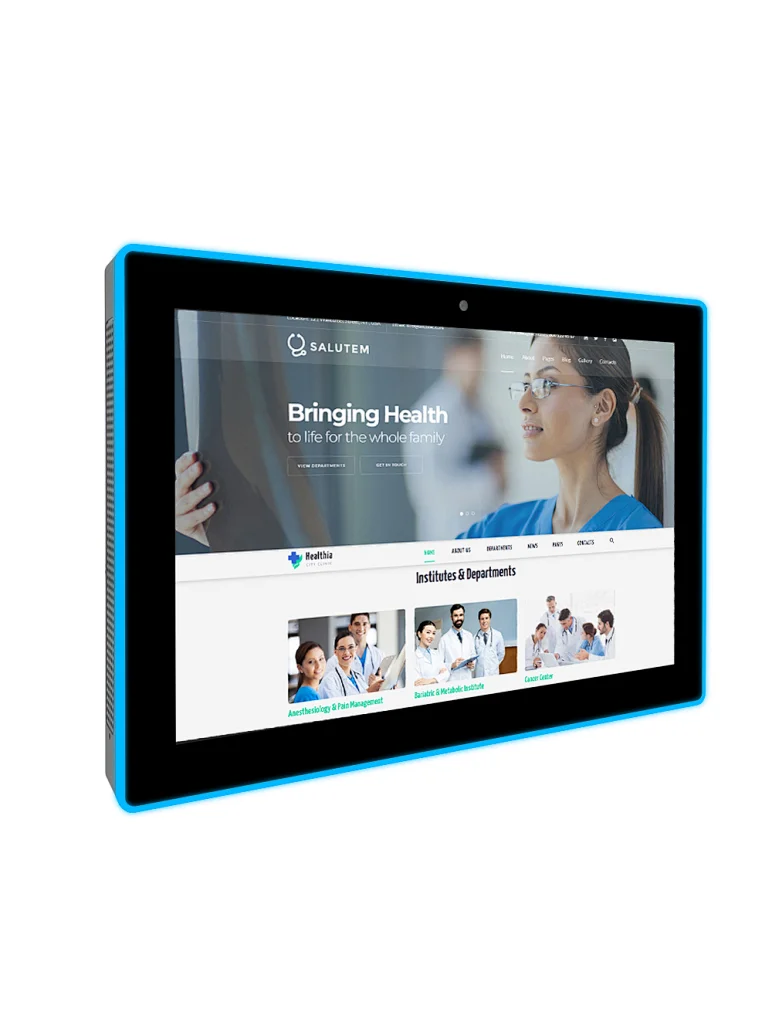

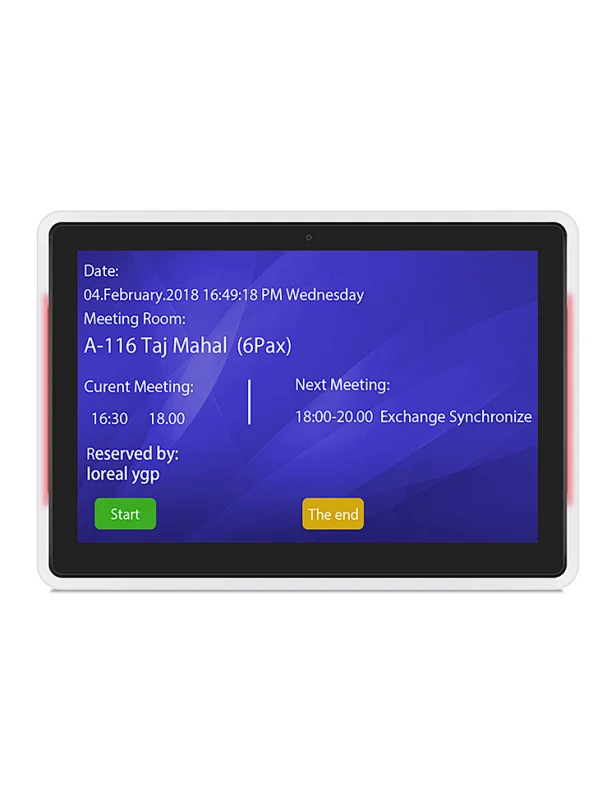

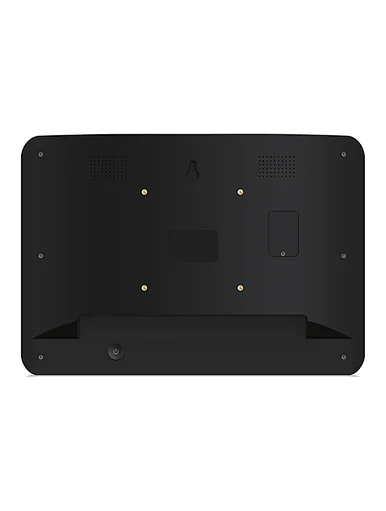

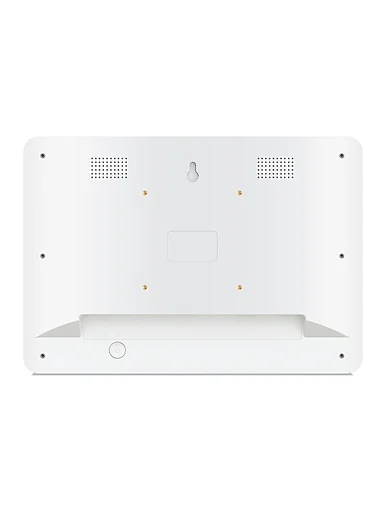

Detail Images
Datail Specification
| System | CPU | RK3288,Quad-core cortex A17 |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation system | Android 5.1/8.1 | |
| Touch screen | 10-Point capacitive touch | |
| Display | Panel | 10.1"LCD panel |
| Resolution | 1280*800 | |
| Display mode | Normally black | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Contrast ratio | 800 | |
| Luminance | 250cd/m2 | |
| Aspect Ratio | ,16:10 | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet | |
| Buletooth | Bluetooth 4.0 | |
| Interface | Earphone | 3.5mm earphone + Micphone |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |
| Other | VESA | 75x75mm |
| Speaker | 2*2W | |
| Microphone | yes | |
| LED Light bar | LED Light bar，RGB | |
| NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica | |
| Camera | Front camera,2.0M/P | |
| Working temp | 0--40degree | |
| Certificates | ||
| Language | Multi-language |
Appearance characteristics
1. Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.
2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1280x800 display resolution
3. Lightweight fuselage: Easy to install
4. Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.
Use Scenarios
1. Education: It can be used for online interaction between teachers and students
2. Entertainment: Smoothly run games and mainstream video formats.
3. Consumer ordering: Electronic menu display and order placement for restaurants
Detail Images
