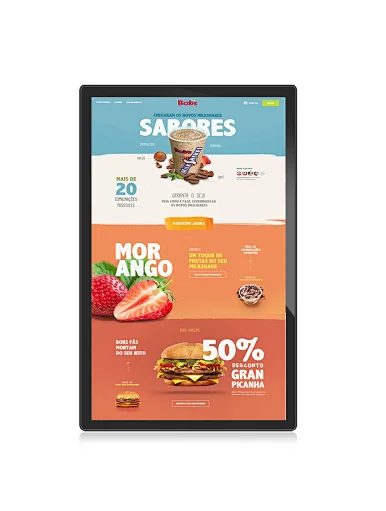

15.6 Inch RK3288 Digital Signage
MID-1501
Main IC : Rockchip 3288, Quad Core, Cortex A17, 1.8GHz
Display : 15.6 inch Resolution : 1920*1080 IPS
RAM : DDR3 2GB Flash : 16GB
OS : Google Android 5.1/6.0/8.1 WiFi: 802.11 b/g/n
Bluetooth : Yes HDMI: Yes RJ45: YES
Camera : Front: 2.0 MP camera VESA: 100x100mm
Speaker: 2*2W Adaptor: 12V,3A
Note: Without battery, include Power Adapter
Quantity
15.6 inch digital signage With Android latest Version 11.0 System Android all in one tablet pc

Product Description

15.6 Inch RK3288 BT4.0 POE Digital SignageFull HD 15.6 Inch RK3288 BT4.0 POE Digital Signage

15.6'' RK3288 Wall Mounted Touch Screen PoE Android8.1 Digital Signage advertising displyer

Product Product features:

  1. OS: Android 8.1  / 15.6 Android digital signage All in one tablet

  2. Various input-output ports: DC in, HDMI output, mini USB OTG,USB 2.0 host, 3.5mm audio jack, RJ45(PoE), SD card slot

  3. Connection: supports Wi-Fi, Bluetooth 4.0, RJ45, PoE optional Digital Signage

  4. Built for 24/7 use: strong durability supported to present business messaging 24/7

  5. Full HD image: class-A LCD panel, HD image


 Detail Specification
SystemCPURK3288 Quad core cortex A17
RAM2GB
Internal memory 16GB
Operation SystemAndroid 5.1/6.0/8.1/9.0
Touch Screen10-Point capacitive touch
DisplayPanel15"LCD panel
Resolution1024*768
Viewing angle80*80*80*80
Display modeNormally black
Contrast ratio800
Luminance250 cd/m2
Aspect Ratio,4:3
NetworkWiFi802.11b/g/n
Ethernet10M/100M Eethernet
BluetoothBluetooth 4.0
InterfaceCard slotSD,support up to 32GB
Mini USBUSB OTG
USBUSB  Host 2.0*3
Power Jack DC power input
RJ45Ethernet
HDMIHDMI output
Earphone3.5mm earphone
Media playsVideo formatMPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K
Audio formatMP3/WMA/AAC etc.
Photojpeg

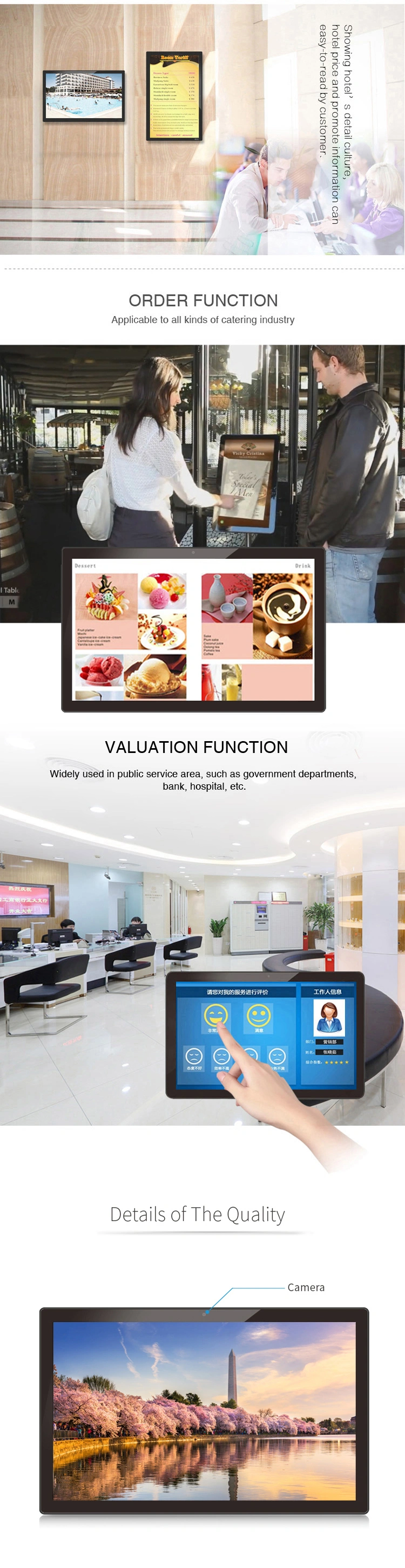

Use Scenarios

15.6 inch digital signage


1. Supermarket advertising: It can be used for shops to display their own product details, prices and other information, as well as advertising in the elevator, and so on

2. Medical treatment: It can be used for doctor information display screen at the entrance of the clinic, doctor information display in the corridor, and registration display screen

3. Gym: treadmill exercise, heart rate, speed and other information display, exercise information record display, rowing machine display, strength, speed, boxing, yoga and other tutorial video play

4. Catering industry: It can be used for a variety of small, medium and large milk tea shop product information display, catering advertising, food production process video play, corporate chain example display


Detail Image
