10.1 Inch L Type Tablet PC
MID-1017S
1
Main IC : Rockchip 3128 , Quad-Core,
Display : 10.1 inch Resolution : 1280*800 IPS
RAM : DDR3 1GB Flash : 16GB
OS : Google Android 6.0
Bluetooth: 4.0 WiFi: 802.11 b/g/n
HDMI: Output
RJ45: YES Camera : Front: 2.0MP
Speaker: 2*1W
10 Points Capacitive Touch Screen
Input/Output :DC In,HDMI output,Micro SD, USB 2.0 ,3.5mm Audio Jack,RJ45 ,Microphone
Display : 10.1 inch Resolution : 1280*800 IPS
RAM : DDR3 1GB Flash : 16GB
OS : Google Android 6.0
Bluetooth: 4.0 WiFi: 802.11 b/g/n
HDMI: Output
RJ45: YES Camera : Front: 2.0MP
Speaker: 2*1W
10 Points Capacitive Touch Screen
Input/Output :DC In,HDMI output,Micro SD, USB 2.0 ,3.5mm Audio Jack,RJ45 ,Microphone
Quantity
L Type Digital Signage For Restaurant Ordering& Customer Feedback All in one Tablet PC
Detail Specification
Detail Specification
| System | CPU | RK3128 Quad core cortex A7 |
| RAM | 1GB | |
| Internal memory | 16GB | |
| Operation system | Android 6.0 | |
| Touch screen | 10-Point capacitive touch | |
| Display | Panel | 10.1"LCD IPS panel |
| Resolution | 1280*800 | |
| Display mode | Normally black | |
| Viewing angle | 85/85/85/85 (L/R/U/D) | |
| Contrast ratio | 800 | |
| Luminance | 250cd/m2 | |
| Aspect Ratio | ,16:10 | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | RJ45,10M/100M | |
| Buletooth | Bluetooth 4.0 | |
| Interface | Card slot | TF,Support up to 32GB |
| USB | USB slave | |
| USB Host | USB host *2 | |
| HDMI | HDMI output | |
| Power jack | DC power input | |
| Earphone | 3.5mm earphone+micphone | |
| USB | USB for serial (RS232 format) | |
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4， 25.5W ) | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 1080p |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |
| Other | NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Microphone | Standard single microphone | |
| Speaker | 2*1W | |
| Camera | 2.0M/P,front camera | |
| Language | Multi-language | |
| Working temp | 0--40degree | |
| Certificates | ||
| Color | White/black |
Product Features:
1. Desktop design
2. Use for supermarket, meeting room, hotel
3. White and Black optional
4. RJ45
5. Touch screen
6. Android 6.0 system

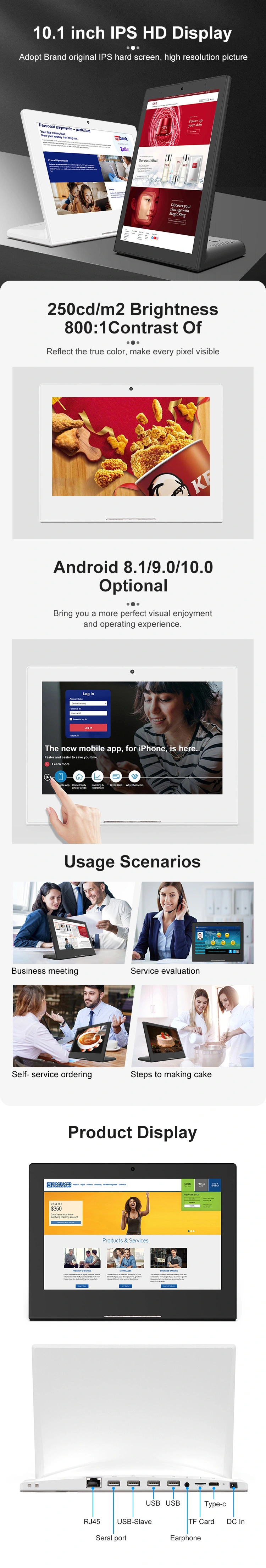

Details Images:
