27 Inch All in One Incell Smart Screen

27 Inch All in One Incell Smart Screen
AIO-2701
27 Inch Incell Smart Screen
Model No: AIO-2701
Resolution:1920*1080 or 2560*1440 or 3840*2160p 4K
CPU:6 CORE ( RK3399 Cortex-A72*2+Cortex-A53*4)
RAM: 4GB. ROM: 64GB
OS:Android 11.0
Battery:152WH ( 3-4 Hours )
Quantity

Speciification
Display size27 Inch Incell Smart Screen
Active Area(mm)597.888 (H) ╳ 336.312 (V)
Resolution (H x V)1920*1080 or 2560*1440 or 3840*2160p 4K
Aspect Ratio16:9
Brightness(Typical)250cd/m2
View Angles LR,UD(CR>10)H 178°/ V 178°
Touch ScreenCapacitive Touch Panel
Touch PanelG+FF
CPU6 CORE ( RK3399 Cortex-A72*2+Cortex-A53*4)
RAM4GB
ROM64GB
OSAndroid 11.0
WIFIWIFI 6
Battery Capacity152WH
Speaker8Ω 5W*2

Detail Image

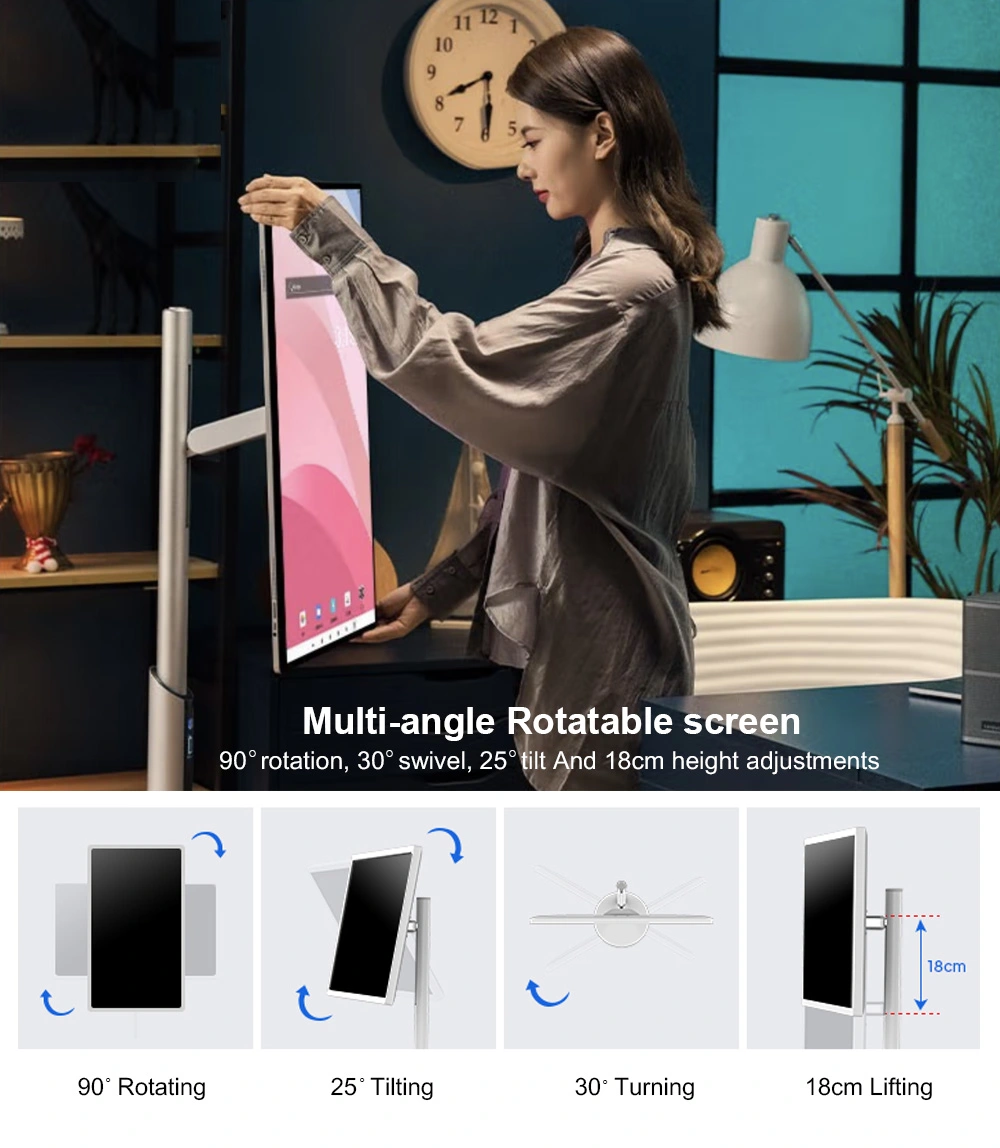

Adjustable in Multiway :

Multiple adjustment options: Rotate, swivel, tilt, move, height adjust, including up to 30 degrees rotation,90 degrees swivel,25 degrees tilt, and 18 cm height adjustments, all details are designed for your comfortable watching wherever you are.

Share your highlights :

It allows you to effortlessly stream, share, and mirror your favorite content from your phone, tablet and PC.By the built-in functions, you can play games with family and friends, or watch the game live broadcast with others, and you can even screen share your emotions or life in your YouTube.

Enjoy it everywhere :

1.Five wheels hidden in the base of the product make it easy to move around your home. Take it from your workspace to kitchen to living room, and back again without hassle.

2.A built-in battery lets you use it wirelessly, so you can place it wherever you need. The battery lasts for up to 3 hours on a single charge-enough for a movie, a workout, or even a study session.

Integrate into daily-life :

A variety of features, a wireless design, and expanded connectivity with Type C USB, HDMI, and Type C input support, allow you to use it in more places, for more of the things you love to do.

In-cell Screen Panel :

What is incell? In-cell technology refers to a standard of displays that emerged in 2012 and allow mobile devices, such as smartphones, to have thinner form factors. They also allow devices to keep a low weight even when the display increases in size.

In-cell displays are revolutionary in the sense that they combine a digitizer, use touch input, and integrate an LCD screen into a single-layer display. Some reports also suggest that in-cell technology displays provide better resolution compared to standard LCD screens.

Contact us for more details(or for private needs) :

Due to the wide range of panels available and the specific configurations we offer, it is impossible to list all technical data.As a result, the information listed below is generic.For more detailed information please contact us directly.We would love to help you build an smart TV screen to meet your needs.



Network
WiFi802.11b/g/n/a/ac/ax (WiFi 6)
BluetoothBluetooth 5.0
Ethernet100M/1000M

Interface
Power JackDC power input
MIC-INExternal microphone input
Type-cFull Function ( Except for charging function )
Type-c USBUSB 3.0
Type-c USBUSB 3.0
HDMI INSupport HDMI 2.0

Media play
Video formatMPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC,AV1, etc.,max support up to8K@60fps
Audio formatMP3/WMA/AAC/WAV/OGG, etc
Photojpeg/png/gif,etc

Other
Product Colorswhite/Black
VESA100mm*100mm
ButtonPower/Vol+/Vol-
Speaker5W*2
MicrophoneBuilt in dual Microphone , Support noise reduction and echo cancellation
NFCOptional , 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
G-sensorSupport 90 degrees
CameraOptional External USB type camera ( 2.0MPor 5.0MP )
LanguageMulti-language
CertificatesCE/FCC

Power
Power TypeAdapter
Input VoltageDC 18V/4A
Power consumption<=25W
StandbyStandby<=0.5W
Built-in battery capacity14.8V/5000MA
Full battery life3.0H
Indicator light modePowen on (RED)

Construction
Machine Size(L*W*H)527.04*296.5*27.8mm
Machine Weight (Without pack)3.76KG
Stand Size(L*W*H)TBD
Stand Weight (Without pack)TBD
Stand Function Tilting ( Forward tilt- Lean back )-5 ~ 20
Stand Function Rotating ( Clockwise )90
Stand Function Turning ( Left and Right )-15 ~ 15
Stand Function Lifting(up-down)180mm

Working Surrounding
Storage Temperature-20---60
Working Temperature0---45 10~90%RH
