55 Inch ANDROID WALL BOARD DIGITAL SIGNAGE
MID-5501T
1
*Main IC : RK3288 /RK3399 Option
* Android 6.0/7.1
*1920*1080 IPS ; 2G/16GB
*HDMI: output
* Android 6.0/7.1
*1920*1080 IPS ; 2G/16GB
*HDMI: output
Quantity
55 digital signage
Product Specification
| System | CPU | RK3288 Quad core cortex A17 |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operationsystem | Android 5.1/6.0/8.1/9.0 | |
| Touch screen | 10-Point ,G+G | |
| Display | Screen | 55"LCD |
| Resolution | 1920*1080 | |
| Display mode | Normally black | |
| Viewing angles | 85/85/85/85 | |
| Contrast ratio | 1200 | |
| Luminance | 300cdm2 | |
| Display mode | Normal black | |
| Aspect Ratio | ,16:9 | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 10M/100M ethernet | |
| Bluetooth | Bluetooth 4.0 | |
| Interface | Card slot | SD,Support up to 32GB |
| Mini USB | USB OTG | |
| USB | USB Host 2.0*2 | |
| RJ45 | Ethernet interface | |
| HDMI | HDMI output | |
| Earphone | 3.5mm earphone | |
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |
| Other | VESA | 400x400mm |
| Speaker | 2*5W | |
| Language | Multi-language | |
| Working temp | 0--40degree | |
| Certificates | ||
| Power | AC100-240V | |
| Accessories | User manual | yes |
Appearance characteristics

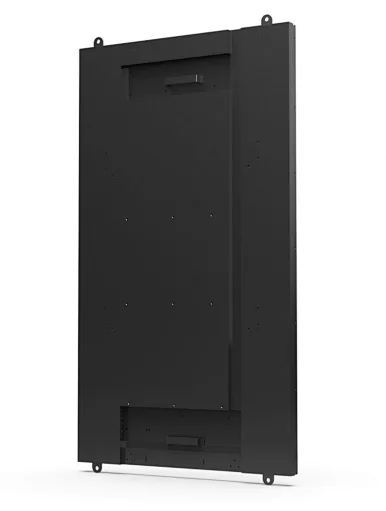

1.Wall Mount: Bracket is optional for desktop placement of the device;Equipped with wall mounting bracket, support portal or landscape installation.
2. Original A + screen:Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
3. Lightweight fuselage: easy to install
4. Cooling hole: The fuselage has its own cooling holes to ensure that the machine can continue to operate, effectively reduce the damage caused by high temperature to the machine, and greatly prolong the service life of the machine.
Use Scenarios
1. Supermarket advertising: It can be used for shops to display their own product details, prices and other information, as well as advertising in the elevator, and so on
2. Medical treatment: It can be used for doctor information display screen at the entrance of the clinic, doctor information display in the corridor, and registration display screen
3. Gym: treadmill exercise, heart rate, speed and other information display, exercise information record display, rowing machine display, strength, speed, boxing, yoga and other tutorial video play
4. Catering industry: It can be used for a variety of small, medium and large milk tea shop product information display, catering advertising, food production process video play, corporate chain example display
